Product Presentation:

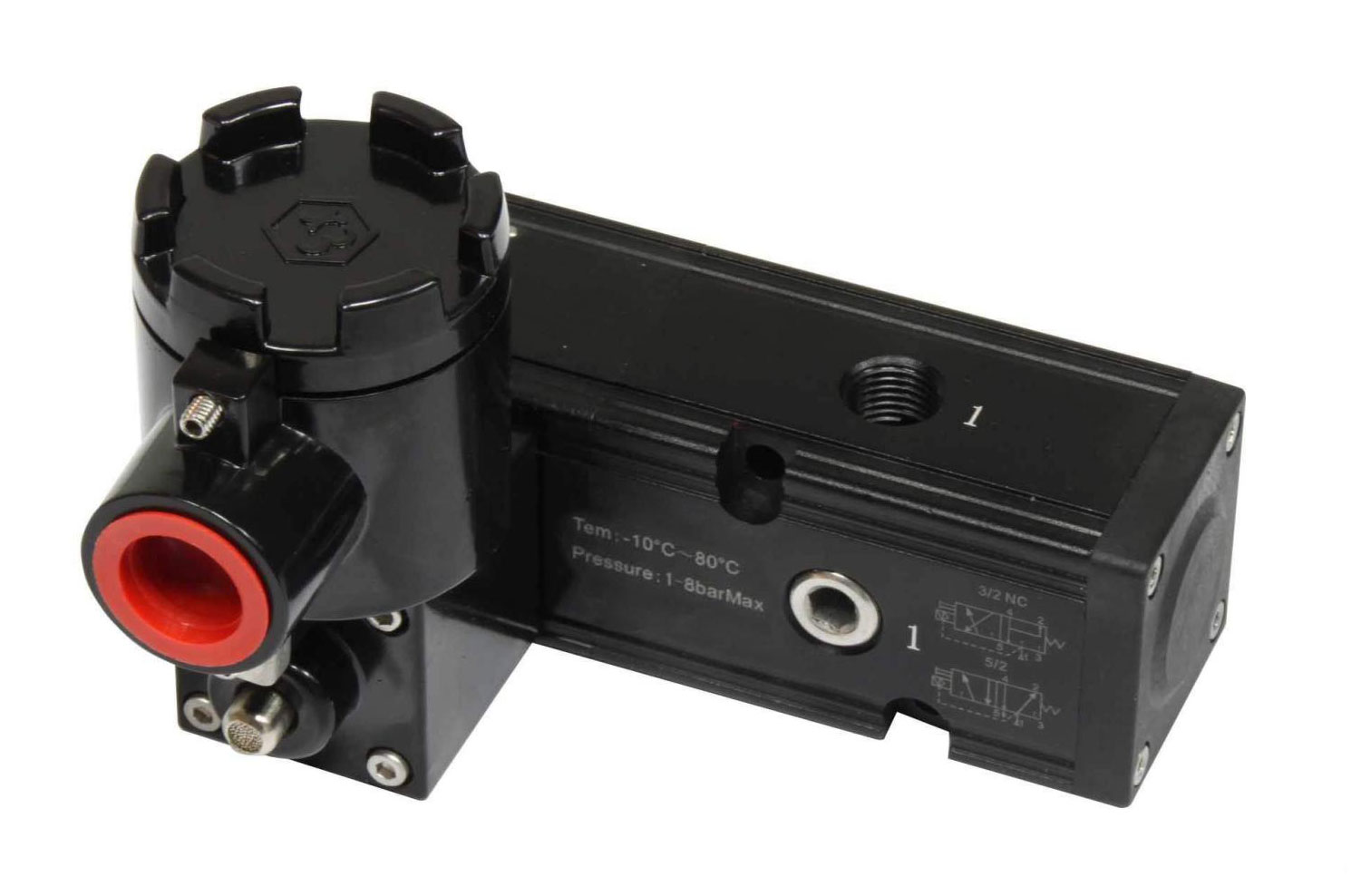

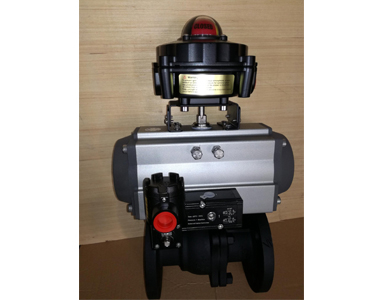

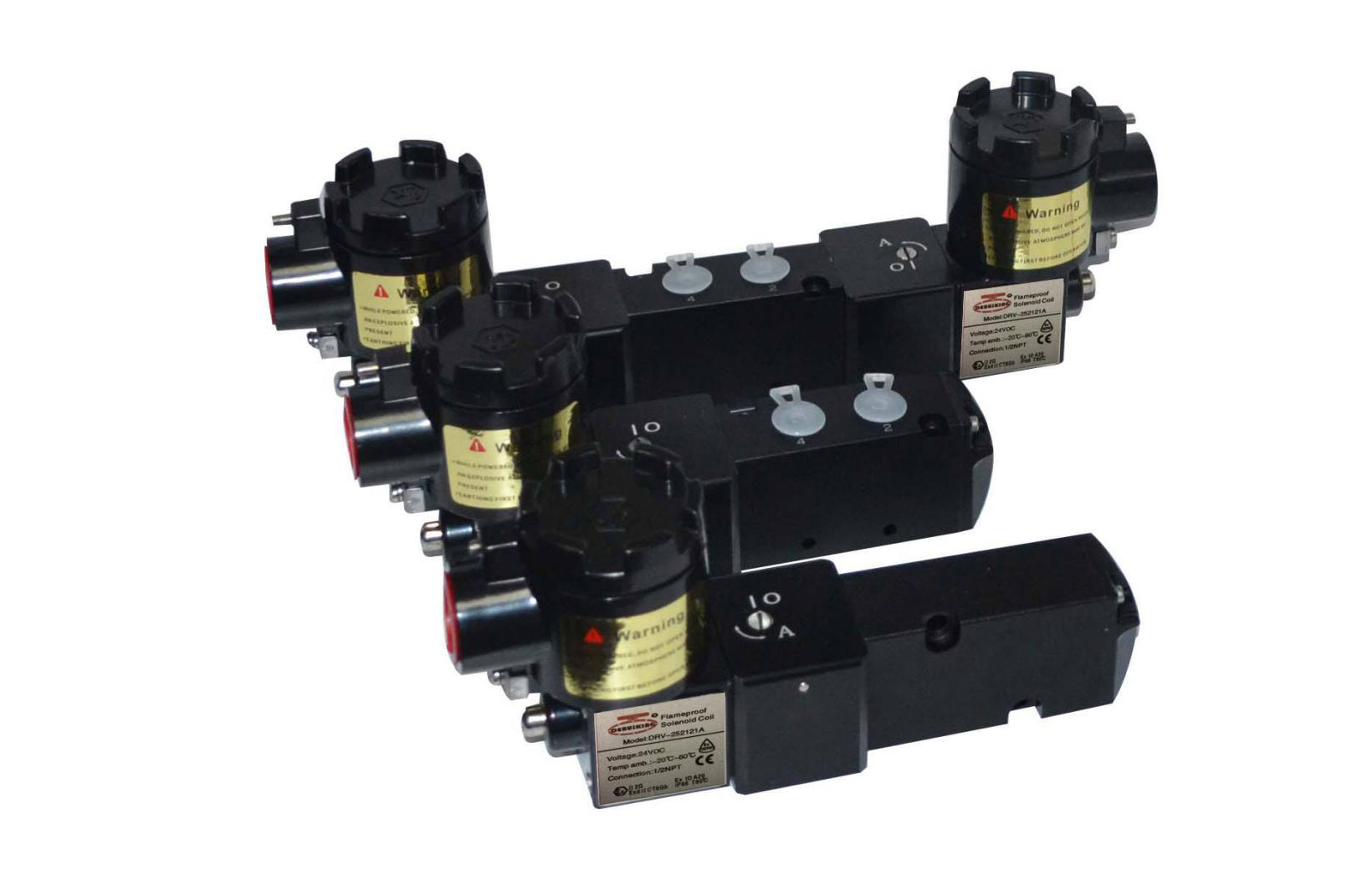

DRV series solenoid valve, pipe and/or plate connection version, is a five-way/three-way, two-position solenoid operated and spring return valve.The integral slot throttle structure design and high precision finishing technique for valve hole allow for positive shifting of air flow and constant cleaning of the spool with each shift.enabling the valve to stroke millions of trouble-free cycles.The DRV  series solenoid valve is intended for use on all Valves & Controls rack and pinion actuators that incorporate the standard of Namur accessory directional control valve mounting pad(24mm x 32mm rectangle or 40mm x 45mm rectangle). The operating principle of the directional control is as following.

Features and Benefits：

·The new standard in Solenoid Valves

·New High Performance Design

·SS housing is Powder coated for superior corrosion resistance

·Housings have captive cover bolts

·Dome is made from Polycarbonate and is shatterproof

·Unique two piece molded indicator helps for long life and flexibility

·Sonic Set cams are serrated to lock together ensuring settings are secured against vibration

·Fully compatible with all DERUIKING Pneumatic Actuators

Function :   3/2,5/2 and 5/3 solenoid and air operated valves.

Design :   Pilot operated spool valve with combined pneumatic and spring return

Mounting:   For direct mounting on NAMUR interface.

Material specifications :  Aluminium body. Stainless steel is available

Media :    Dry or lubricated air.

Voltage :   24VDC ，220VAC
