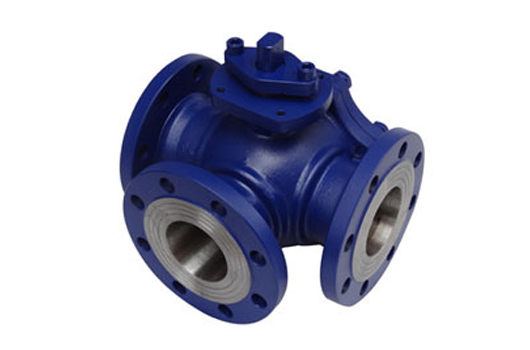

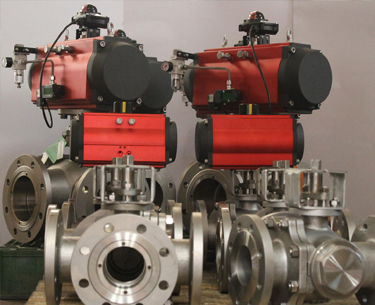

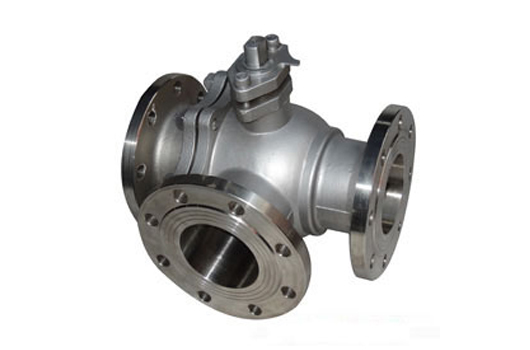

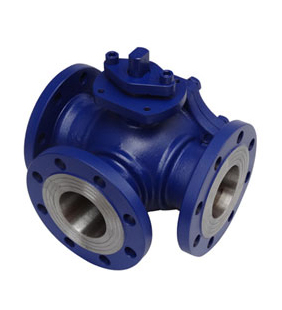

DRKV Series of three-way O ball valve consists of pneumatic or electric actuator and three-way ball valve.Changing the relative position of the core and pipe can carry out different combination control for three pipeline fluids.The Model PFT/VB accepts the switch signal of the control system and switches the pipeline by changing to the operating ball valve.

T - type tri-pass can connect the three orthogonal channels to each other, which can also connect the two pipes and cut off the other.

The l-type tee can only connect two orthogonal channels or the direction of switching, that is, the distribution function.

Type: two open casting ball valves

Size range: DN15 ~ 150mm

Pressure range: 150 ~ 300LB

Connection form: RF (ANSI B16.5)

Materials: WCB, CF8, CF8M, CF3, CF3M

Upper cover: standard type with body cast

Packing: PTFE, graphite

Valve core type: T type, L type ball type

Flow characteristics: fast

For valve core Angle: 90 °

For applicable temperature: - 40 ~ 450 ℃

Design and manufacturing standard: ANSI B16.34 / EN 12516

Test standard: IEC 534-4 Class V, ANSI/fci70-2

Flange connection standard: ANSI B16.5 / en1092-1:2001
