Product Presentation:

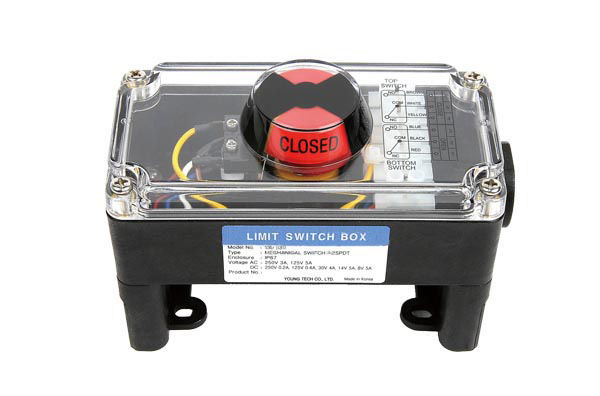

Protective type limit switch box DRS series is a kind of compact, economic and reliable product, which has achieved local visibility and remote indication of valve position. It allows different built-in switches and can be used under high temperature, low temperature and other severe environments. The product has got CSA, NEMA4, NEMA4X and IP67 certifications

Features ：

· Die cast aluminum housing is powder coated for superior corrosion resistance

· Housings have captive cover bolts

· Dome is made from polycarbonate and is shatterproof

· Unique two piece molded indicator helps for long life and flexibility

· Sonic Set cams are serrated to lock together ensuring settings are secured against vibration

· Color coded to ease wiring

· Special Printed Circuit Board eliminates all wiring from the switch element to the terminal. Provides

protection against short circuits

· Temperature range: -20°C to 80°C (176°F)

· Stainless steel brackets are available
